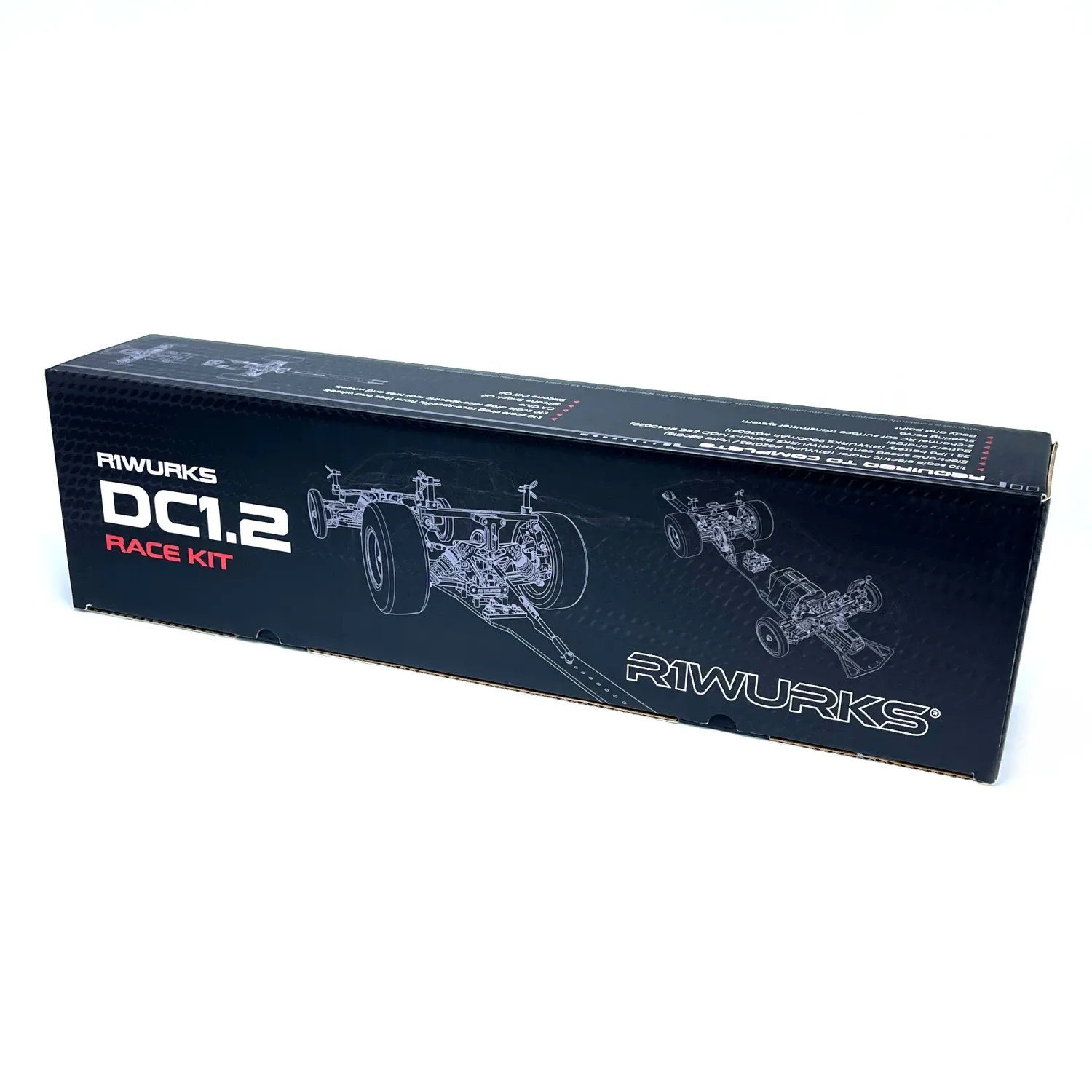

R1WURKS DC1.2 Pro Drag Kit

R1WURKS DC1.2 Pro Drag Kit

The long-awaited successor to the DC1.2 has arrived. This kit features the most popular option parts used by the R1Wurks Drag Racing Team. Join the winning team and experience the thrill of victory with the most advanced RC drag race car available – the R1Wurks DC1.2 Pro Kit.

KIT FEATURES:

• Optimized carbon fiber chassis
• Drop-down wheelie bar bracket
• Motor mount support
• Left side adjustable motor support wedge
• Adjustable Front Bumper
• Aluminum gearbox with a 2.6 to 1 ratio
• Drag race-specific CVA drive shafts
• Pinned rear wheel hexes
• Sealed hard coated aluminum gear differential
• Aluminium hard coated idler gear
• Lightweight aluminum rear shock tower
• Aluminum threaded Pro Shocks
• Adjustable steel camber and steering link turnbuckles
• Adjustable wheelie bar turnbuckle
• Dual Battery Straps
• Flex-tuned wheelie bar
• 14 Precision ball bearings
• Direct Mount and Floating Body Mounts
• Direct Mount Toe Blocks
• Delrin and Plastic Rear arms
• Aluminum Front Bulkhead and Tower

REQUIRED TO COMPLETE:

• 1:10 scale electric motor (R1Wurks #020165 / Volta 880015)
• Electronic speed control (R1WURKS Digital-3 MOD ESC #040020)
• 2S LiPo battery (R1WURKS 9000mAh #030051 or similar) and charger
• 2-channel RC car surface transmitter system and steering servo
• Body and paint
• 1:10 scale drag race-specific tires and wheels
• CA Glue
• Silicone shock and diff oil
• Pinion gear

REQUIRED TOOLS:

• 1.5mm Hex Driver [R1WURKS Tool Set #90004]
• 2.0mm Hex Driver [R1WURKS Tool Set #90004]
• 2.5mm Hex Driver [R1WURKS Tool Set #90004]
• 5.5mm Hex Socket Driver [R1WURKS Premium Metric Nut Driver, 5.5mm #900046]
• 7.0mm Hex Socket Driver [R1WURKS Premium Metric Nut Driver, 7.0mm #900045]
• Hobby knife
• Body scissors
• Body hole reamer

PDF MANUAL: DC1.2 Instruction Manual

The vehicle shown in the photos includes items that are not part of this kit. The motor, battery, ESC, servo, wheels/tires, and pinion gear are not included. Additionally, the kit does not come assembled.

R1Wurks is constantly developing and improving its products. Please note that the specifications of this kit or the design of its parts may change from what is represented in product photos and what is illustrated in the instruction manual.
